SimMirror
Mirror and drive the iOS Simulator: token-efficient UI snapshots, gestures and a live viewer.
SimMirror
Mirror and drive the iOS Simulator from Claude Code, CLI agents and the browser.

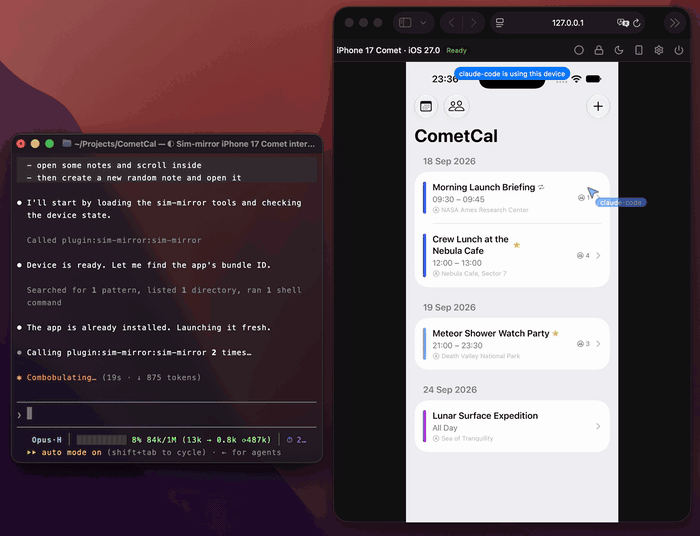

A live iOS Simulator in any browser tab or web page, an animated cursor that shows exactly what your AI agent is about to tap, and token-efficient UI snapshots so agents read the screen as compact text instead of screenshots. Works with Claude Code, Codex, Cursor and any other MCP client.
Status: 1.0. The agent tools, the viewer, the protocol and the embedding API are stable, and a check holds every 1.x release to what SimMirror promises not to break.
Why SimMirror
- See the simulator anywhere. A live H.264 or JPEG stream in a Chrome tab, an iframe or a
<sim-mirror>web component, with touch, scrolling, typing, hardware buttons and light and dark mode. - Watch what the agent does. Every agent gesture is announced before it lands, and the viewer's cursor glides to the spot first -- so you can follow along, and step in: an agent waits for your hand to be still.
- Spend fewer tokens. Agents read accessibility snapshots with stable element refs and diffs between screens, act in batches with waits, and reach for a screenshot only when a question is visual.
Install
Claude Code, with the plugin (tools, a skill that teaches snapshot-first use, and /sim-mirror:open):
/plugin marketplace add AndrewKochulab/sim-mirror
/plugin install sim-mirror@sim-mirror
Any MCP client, as a stdio server:
claude mcp add sim-mirror -- uvx --from sim-mirror==1.0.0 sim-mirror mcp
Configurations for Codex, Cursor and other clients.
The command, for sim-mirror open, doctor and the rest:
uv tool install sim-mirror==1.0.0
# or
brew install andrewkochulab/tap/sim-mirror
The viewer library, for your own pages: npm install @andrewkochulab/sim-mirror
(npm). SimMirror itself is
on PyPI and in a Homebrew tap.
Requirements: an Apple Silicon Mac, Xcode 26 or later, and uv or Homebrew. Nothing else: SimMirror drives a simulator with its own helper, which comes in the package. Details in Installation.
Quickstart
sim-mirror doctor # check this Mac, ending with a real tap on a simulator
sim-mirror open # this project's simulator, live in a browser tab
Then ask your agent:
Open Settings → General → About and tell me which iOS version this simulator runs. Use sim_snapshot rather than screenshots.
Getting started explains what happens along the way.
Features
Live viewer. H.264 through WebCodecs where the page can decode it, JPEG otherwise, negotiated per connection. Touch, drag, scroll, typing and paste, Home and Lock, light and dark, and a device picker. It reconnects by itself after a blip and says plainly when the simulator is off.
Agent cursor. Every agent gesture -- tap, long press, swipe, drag, typing -- reaches the viewer before it lands, and
the viewer's own pointer glides there first (agent.cursor_lead_ms). Never the Mac's pointer.
Screen understanding. A snapshot is a few lines -- e2 button "General" (201,319) -- with refs that stay with their
elements across scrolls, a digest, and diffs. sim_act plays up to 20 steps in one call and waits for text, its
absence, or the screen to settle. See Screen understanding.
Connectors. SimMirror's own native helper gives full control with nothing to install; idb_companion still can,
and the simctl connector mirrors the screen view-only when neither is there, and says why. auto uses the fastest that
works and falls back when one fails. More connectors plug in through an entry point. See
Connectors.
Embedding. An iframe with a one-shot ticket, the
<sim-mirror> element themed with CSS custom properties, or SimMirror
inside a Python application with its own sign-in.
Settings panel. sim-mirror open --settings puts every setting a click away in the viewer, a tab per section,
saved for one project or all of them and applied before it says so. Settings that decide what runs or who may reach
the daemon wait for a code from sim-mirror settings confirm. See The settings panel.
Doctor. Checks Xcode, its Simulator frameworks, runtimes, the native helper and idb_companion, Device Hub and the desktop session, then proves a tap reaches a simulator. See the doctor.
Security. Loopback only, a Host allowlist, exact Origin checks, CORS and framing only for origins you list, hashed scoped tokens, and one-shot codes in URL fragments. See Security.
Build and test. sim_build_run and sim_test build with xcodebuild for the agent's simulator, install and
launch, and answer with only what failed and where -- each failing test named so it can be run again alone, and on
another simulator when asked. Off by default, since they run commands: sim-mirror config set build.tools true.
Measure the token cost
benchmarks/tool_budget.py calls each read-only tool through the same MCP relay a client uses and prints each answer's
bytes, estimated tokens and latency on your own screens; see the token budget example. On
an iPhone 17 Pro simulator (iOS 26.5, idb connector) showing Settings → General, 5 calls each (2026-09-16):
| Call | Tool | Bytes | Tokens (est.) | p50 ms | p95 ms |
|---|---|---|---|---|---|
| device info | sim_device | 265 | 46 | 2.9 | 3.6 |
| snapshot, full | sim_snapshot | 561 | 112 | 64.8 | 76.4 |
| snapshot, diff of an unchanged screen | sim_snapshot | 83 | 5 | 63.2 | 64.8 |
| screenshot, 400 px wide | sim_screenshot | 62222 | 469 | 8.2 | 8.9 |
| screenshot, 1200 px wide | sim_screenshot | 276472 | 4181 | 20.4 | 21.9 |
Bytes are the whole answer, an image's base64 included; tokens are estimates (text at about 4 characters a token, an image at about 750 pixels a token).
Compatibility
| Expected to work | |
|---|---|
| macOS | 26 (15 with Xcode 16.4, view-only) |
| Xcode | 26 and 27 |
| Connectors | native helper (full control), idb_companion 1.5 (full control), simctl (view-only) |
| Clients | Claude Code, Codex, Cursor, any stdio MCP client |
| Browsers | Chrome, Safari, Firefox, Edge |
Rows checked on real hardware are marked verified, with the date, in Compatibility.
From 1.0 the tools, the protocol, the embedding API, the viewer package, settings and the command line are held to what SimMirror promises not to break: a 1.x release adds, and never breaks. Connectors are the exception, and pin a minor version.
Documentation
Everything: getting started, clients, embedding, screen understanding, connectors, security, architecture, and the reference for tools, configuration, the command line and the protocol.
Roadmap
| Milestone | What it brings |
|---|---|
| v0.1 (preview) | Live viewer, agent cursor, person and agent control, MCP tools, sim-mirror doctor, idb and simctl connectors, build and test as a preview |
| v0.2 | Build, run and test tools, a settings panel, Xcode 27's UI hierarchy through mcpbridge, one shared daemon for many hosts |
| v1.0 (now) | Stable protocol and embedding API, held by a check; PyPI, npm, Homebrew and the MCP Registry; a cursor that stays while the agent works |
| v1.2 | A native Swift helper connector, an OCR and vision fallback reader, an optional in-app debug SDK |
| v2.0 | Real iPhones: view, install and launch without signing; full control through WebDriverAgent |
| Android | Android emulator support with the same viewer, cursor and tools |
| Website & launch | Landing page, video tutorials and guides |
See ROADMAP.md and the milestones. How SimMirror relates to other tools is in Comparison.
Contributing
Contributions are welcome. Read CONTRIBUTING.md and the Code of Conduct; AI coding agents read AGENTS.md. Report security issues privately as described in SECURITY.md. Questions go to Discussions.
License
Apache-2.0. See NOTICE and THIRD_PARTY_LICENSES.md.
SimMirror is an independent project, not affiliated with Apple or Anthropic. iOS, iPhone, Xcode and Simulator are trademarks of Apple Inc.; Claude and Claude Code are trademarks of Anthropic PBC.
Installation
Source-derived launch command. Check the maintainer’s required arguments and credentials before running:
uvx sim-mirrorSet up in your AI client
Merge this template into ~/Library/Application Support/Claude/claude_desktop_config.json. Keep existing servers. Add any arguments, credentials, and permissions required by the maintainer; this template has not been install-tested.
{
"mcpServers": {
"io-github-andrewkochulab-sim-mirror": {
"command": "uvx",
"args": [
"sim-mirror"
]
}
}
}Restart Claude Desktop completely for changes to take effect. Confirm the server appears connected in the client’s tool list, then try a read-only example from its documentation.
Claude Desktop setup referencePackage
Compatible MCP Clients
SimMirror works with any MCP-compatible client. Copy the config snippet from the Configuration section above and add it to the file shown for your client, then restart the application.
- Claude Desktop
~/Library/Application Support/Claude/claude_desktop_config.jsonRestart Claude Desktop completely for changes to take effect. - Cursor
~/.cursor/mcp.jsonRestart Cursor for changes to take effect. - VS Code
.vscode/mcp.jsonReload VS Code window for changes to take effect. - Windsurf
~/.codeium/windsurf/mcp_config.jsonRestart Windsurf for changes to take effect. - Claude Code
.mcp.jsonSave at the project root, then start Claude Code in that project and review the MCP server approval prompt. Keep real credentials out of shared files.
